Tutorial 8: Measuring the impact of a retracted paper¶

Run it in your browser with nothing to install, or on your own computer: how to run the tutorials.

In 2006, Nature published "A specific amyloid-β protein assembly in the brain impairs memory" (Lesné and colleagues, PMID 16541076). It reported Aβ*56, an assembly of amyloid-β that impaired memory in mice, and it became one of the most cited papers in Alzheimer's disease research. In July 2022 an investigation in Science raised concerns about manipulated images in it, and Nature added an editor's note. In June 2024 the paper was retracted, with all authors except the first agreeing (retraction notice, PMID 38914864).

A retraction removes a paper from the record, but not the papers built on it. This tutorial measures how far the paper reached, and how the papers citing it use it.

In brief¶

From the saved run, on 19 October 2026:

• It reached one in seven Alzheimer's papers. 1,240 papers in PubMed cite it, and 44,921 more cite one of those: together, 15,039 of the 107,302 Alzheimer's disease papers in PubMed since 2006.
• Most papers cite it for a general idea. Of the 879 citing papers whose citing sentence could be read, from the full text or from Semantic Scholar, 687 cite it for a general statement about amyloid-β oligomers and memory; 180 name Aβ*56.
• Few say it is in doubt. 74 papers cite it from 2022 on; only 11 of them mention the retraction or the doubts where they cite it.
• It is still cited after the retraction. 24 papers cite it from 2024 to 2026. Of the 19 that could be read, 7 say it is retracted or in doubt, 11 cite it as evidence for a general statement, and 1, co-authored by its senior author, reports Aβ*56 as a finding. Section 5 lists them all.
• The work built on it is still growing. Citations of the paper peaked in 2012, but papers citing its citers still grow, to about 4,000 a year.
• Retractions cluster. 6 papers citing it have been retracted too, 4 of them with the same first author.

The sections below show how each number is measured, with a chart for each, and build a knowledge graph to explore in Obsidian. The same notebook measures any other paper if you change the settings. Words such as MeSH, PMC or stub are explained in the glossary.

Time: about 15 minutes, mostly to download the full text of the citing papers (about 100 MB). A free NCBI API key makes it about three times faster.

Your settings¶

This is the only cell you need to edit. To study another paper, change the PubMed ID, its DOI, a few words of its title, and the words that name its specific finding. For a paper that was not retracted, leave the two dates empty.

In [1]:

SEED = "16541076"                 # PubMed ID of the paper: A specific amyloid-beta protein assembly in the brain impairs memory
SEED_DOI = "10.1038/nature04533"  # its DOI, to find it in reference lists
TITLE_WORDS = "specific amyloid"  # a few words of its title, for references without a DOI
FINDING = "Aβ*56"                 # a short name for its specific finding, for the charts
FINDING_WORDS = ["Aβ*56", "Abeta*56", "A beta*56", "A *56", "Aβ56", "Aβ-56", "Abeta56", "56-kDa", "56 kDa"]   # how authors write it
DOUBTS_PUBLIC = "2022-07"         # year and month doubts about the paper became public, or ""
RETRACTED = "2024-06"             # year and month it was retracted, or ""
FIELD = "Alzheimer Disease"       # the MeSH heading of its field, to put its reach in proportion
SECOND_HOP_SEEDS = 10             # citing papers whose own neighborhoods join the knowledge graph
NCBI_API_KEY = ""   # optional: paste your free NCBI key between the quotes to run about three times faster

SEED = "16541076" # PubMed ID of the paper: A specific amyloid-beta protein assembly in the brain impairs memory SEED_DOI = "10.1038/nature04533" # its DOI, to find it in reference lists TITLE_WORDS = "specific amyloid" # a few words of its title, for references without a DOI FINDING = "Aβ*56" # a short name for its specific finding, for the charts FINDING_WORDS = ["Aβ*56", "Abeta*56", "A beta*56", "A *56", "Aβ56", "Aβ-56", "Abeta56", "56-kDa", "56 kDa"] # how authors write it DOUBTS_PUBLIC = "2022-07" # year and month doubts about the paper became public, or "" RETRACTED = "2024-06" # year and month it was retracted, or "" FIELD = "Alzheimer Disease" # the MeSH heading of its field, to put its reach in proportion SECOND_HOP_SEEDS = 10 # citing papers whose own neighborhoods join the knowledge graph NCBI_API_KEY = "" # optional: paste your free NCBI key between the quotes to run about three times faster

In [2]:

# Setup: run this cell as it is. In Google Colab it first fetches the tutorial files.
import os
import re
import subprocess
import sys

if "google.colab" in sys.modules:
    if not os.path.isdir("/content/pubmed-stream"):
        subprocess.run(["git", "clone", "-q", "--depth", "1",
                        "https://github.com/melhzy/pubmed-stream.git", "/content/pubmed-stream"], check=True)
    sys.path.insert(0, "/content/pubmed-stream/tutorials")

import pandas as pd

import tutorial_utils as tu

tu.setup("retraction_impact", api_key=NCBI_API_KEY)
tu.style()
pd.set_option("display.max_colwidth", 200)

from pubmed_stream import impact as ci
import impact_charts as charts
from pubmed_stream import create_kg, download_neighborhood, get_neighborhood

finding = re.compile("|".join(re.escape(w) for w in FINDING_WORDS), re.I)
KINDS = [ci.KINDS[0], f"Names {FINDING}", ci.KINDS[2], ci.KINDS[3]]
COLOURS = dict(zip(KINDS, [tu.ORANGE, tu.BLUE, tu.AQUA, tu.GREY]))
EVENTS = [(int(d[:4]) - 0.5 + (int(d[5:7]) - 1) / 12, f"{pd.Timestamp(d + '-01'):%b %Y}\n{label}")
          for d, label in [(DOUBTS_PUBLIC, "doubts published"), (RETRACTED, "retracted")] if d]

# Setup: run this cell as it is. In Google Colab it first fetches the tutorial files. import os import re import subprocess import sys if "google.colab" in sys.modules: if not os.path.isdir("/content/pubmed-stream"): subprocess.run(["git", "clone", "-q", "--depth", "1", "https://github.com/melhzy/pubmed-stream.git", "/content/pubmed-stream"], check=True) sys.path.insert(0, "/content/pubmed-stream/tutorials") import pandas as pd import tutorial_utils as tu tu.setup("retraction_impact", api_key=NCBI_API_KEY) tu.style() pd.set_option("display.max_colwidth", 200) from pubmed_stream import impact as ci import impact_charts as charts from pubmed_stream import create_kg, download_neighborhood, get_neighborhood finding = re.compile("|".join(re.escape(w) for w in FINDING_WORDS), re.I) KINDS = [ci.KINDS[0], f"Names {FINDING}", ci.KINDS[2], ci.KINDS[3]] COLOURS = dict(zip(KINDS, [tu.ORANGE, tu.BLUE, tu.AQUA, tu.GREY])) EVENTS = [(int(d[:4]) - 0.5 + (int(d[5:7]) - 1) / 12, f"{pd.Timestamp(d + '-01'):%b %Y}\n{label}") for d, label in [(DOUBTS_PUBLIC, "doubts published"), (RETRACTED, "retracted")] if d]

1. The paper and its notices¶

get_neighborhood fetches the paper with every paper PubMed links to it: here up to 5,000 citing papers instead of the usual 100. PubMed also links the notices published about a paper: its retraction, corrections and comments.

In [3]:

hood = get_neighborhood(SEED, max_per_relation=5000)
seed = hood.seed
first_year = int(seed.year)
print(f"{seed.title}\n{', '.join(seed.authors)}\n{seed.journal}, {seed.year}. Retracted: {seed.is_retracted}")
pd.DataFrame(ci.corrections(SEED))

hood = get_neighborhood(SEED, max_per_relation=5000) seed = hood.seed first_year = int(seed.year) print(f"{seed.title}\n{', '.join(seed.authors)}\n{seed.journal}, {seed.year}. Retracted: {seed.is_retracted}") pd.DataFrame(ci.corrections(SEED))

A specific amyloid-beta protein assembly in the brain impairs memory.
Lesné Sylvain, Koh Ming Teng, Kotilinek Linda, Kayed Rakez, Glabe Charles G, Yang Austin, Gallagher Michela, Ashe Karen H
Nature, 2006. Retracted: True

Out[3]:

	type	pmid	source
0	Comment In	16541054	Nature. 2006 Mar 16;440(7082):284-5. doi: 10.1038/440284a.
1	Retraction In	38914864	Nature. 2024 Jul;631(8019):240. doi: 10.1038/s41586-024-07691-8.

2. How far did it reach?¶

The neighbors are the papers that cite it. The neighbors' neighbors are the papers that cite one of those: they may never cite the retracted paper themselves, but they build on work that does. PubMed answers both questions with its citation links, a hundred papers per request, so this cell takes two or three minutes. It also counts the papers of the paper's field, to put the reach in proportion.

In [4]:

hop1 = {a.pmid for a in hood.cited_by}
citers = ci.citers_of(sorted(hop1))
hop2 = set().union(*citers.values()) - hop1 - {SEED}
field_total = ci.pubmed_count(f'"{FIELD}"[mh] AND {first_year}:3000[dp]')
field_near = ci.count_matching(hop1 | hop2, {"field": f'"{FIELD}"[mh]'})["field"]

field_label = FIELD.replace(" Disease", "'s disease")   # "Alzheimer Disease" reads "Alzheimer's disease"
charts.reach(f"PMID\n{SEED}", len(hop1), len(hop2), field_total, field_near, field_label)

hop1 = {a.pmid for a in hood.cited_by} citers = ci.citers_of(sorted(hop1)) hop2 = set().union(*citers.values()) - hop1 - {SEED} field_total = ci.pubmed_count(f'"{FIELD}"[mh] AND {first_year}:3000[dp]') field_near = ci.count_matching(hop1 | hop2, {"field": f'"{FIELD}"[mh]'})["field"] field_label = FIELD.replace(" Disease", "'s disease") # "Alzheimer Disease" reads "Alzheimer's disease" charts.reach(f"PMID\n{SEED}", len(hop1), len(hop2), field_total, field_near, field_label)

The second step is an upper bound on influence, not a measure of harm: a paper that cites a broad review of amyloid-β, which happens to cite the retracted paper, counts too. Section 4 narrows it down by reading how each paper cites it.

3. When was it cited?¶

PubMed's citation links come from articles deposited in PubMed Central, so they count fewer citations than Google Scholar or Web of Science, and the current year is incomplete; its bars are paler.

In [5]:

def person(name):   # last name and first initial: PubMed writes "Lesné Sylvain" and "Lesné Sylvain E"
    parts = name.split()
    return (parts[0], parts[1][:1]) if len(parts) > 1 else (name, "")

seed_people = {person(n) for n in seed.authors}
cited_by = pd.DataFrame([{"pmid": a.pmid, "year": int(a.year), "review": a.is_review, "retracted": a.is_retracted,
                          "pmcid": a.pmcid, "title": a.title, "journal": a.journal, "authors": a.authors,
                          "shared_authors": ", ".join(n for n in a.authors if person(n) in seed_people)}
                         for a in hood.cited_by if a.year and a.year.isdigit()])
last_year = int(cited_by["year"].max())
years = list(range(first_year, last_year + 1))
per_year = (cited_by.groupby(["year", "review"]).size().unstack(fill_value=0)
            .reindex(index=years, columns=[False, True], fill_value=0))
hop2_years = ci.count_by_year(hop2, first_year, last_year)

charts.timeline(years, list(per_year[False]), list(per_year[True]), hop2_years, EVENTS,
                partial=pd.Timestamp.today().year)

def person(name): # last name and first initial: PubMed writes "Lesné Sylvain" and "Lesné Sylvain E" parts = name.split() return (parts[0], parts[1][:1]) if len(parts) > 1 else (name, "") seed_people = {person(n) for n in seed.authors} cited_by = pd.DataFrame([{"pmid": a.pmid, "year": int(a.year), "review": a.is_review, "retracted": a.is_retracted, "pmcid": a.pmcid, "title": a.title, "journal": a.journal, "authors": a.authors, "shared_authors": ", ".join(n for n in a.authors if person(n) in seed_people)} for a in hood.cited_by if a.year and a.year.isdigit()]) last_year = int(cited_by["year"].max()) years = list(range(first_year, last_year + 1)) per_year = (cited_by.groupby(["year", "review"]).size().unstack(fill_value=0) .reindex(index=years, columns=[False, True], fill_value=0)) hop2_years = ci.count_by_year(hop2, first_year, last_year) charts.timeline(years, list(per_year[False]), list(per_year[True]), hop2_years, EVENTS, partial=pd.Timestamp.today().year)

4. How was it cited?¶

A citation count says nothing about why a paper was cited. Was it the evidence for a key step in the argument, one of many references for a general statement, or an example of a problem? The full text answers that.

The next cell downloads the full text of every citing paper in PubMed Central, as XML. In XML each citation is marked, so ci.citation_contexts can find the exact sentence that cites the paper, even inside a range such as [10–14]. Many publishers withhold the full text from PubMed Central; for those papers, the sentences come from Semantic Scholar, which extracts citing sentences from papers it can read. ci.classify then sorts each citing paper by its sentences, in this order:

Kind	The sentence citing the paper...	Colour
Discusses the retraction or doubts	mentions the retraction, manipulated data or images, fabrication, an editor's note, concerns about the paper, or a failure to reproduce it	orange
Names Aβ*56	names the specific finding, with one of FINDING_WORDS	blue
Cites it in general	supports a general statement, such as "soluble oligomers impair memory"	aqua
No full text, or citation not found	could not be read: neither PubMed Central nor Semantic Scholar has the sentence, or it could not be found, for instance because it is in a table	grey

The classification uses keywords, so it makes mistakes: read the examples below before you trust the counts.

In [6]:

with tu.quiet():
    stats = download_neighborhood(hood, output_dir="fulltext", fmt="xml", include_text=False)
contexts = ci.citation_contexts(stats.output_dir, SEED, SEED_DOI, TITLE_WORDS, finding=finding)
by_pmid = {c["pmid"]: c for c in contexts.values() if c["pmid"] and c["sentences"]}
s2 = ci.semantic_scholar_contexts(SEED)   # citing sentences for the papers PubMed Central cannot give

def sentences_of(pmid):
    if pmid in by_pmid:
        return by_pmid[pmid]["sentences"], "full text"
    return (s2[pmid], "Semantic Scholar") if pmid in s2 else ([], "")

def label(kind):
    return f"Names {FINDING}" if kind == ci.KINDS[1] else kind

read_from = cited_by["pmid"].map(sentences_of)
cited_by["source"] = read_from.str[1]
cited_by["sentence"] = read_from.str[0].map(" … ".join)
raw_kinds = read_from.str[0].map(lambda s: ci.classify(s, finding))
cited_by["kind"] = raw_kinds.map(label)
cited_by["second_look"] = [ci.worth_a_look(s, k) for s, k in zip(read_from.str[0], raw_kinds)]
cited_by["mentions"] = cited_by["pmid"].map(lambda p: by_pmid.get(p, {}).get("mentions"))
print(f"Full text downloaded: {stats.successful + stats.skipped} of {stats.requested} articles in PubMed Central; "
      f"{stats.unavailable} withheld by their publishers")
print("Citing sentences read from:", ", ".join(f"{src or 'nowhere'} {n}" for src, n in cited_by["source"].value_counts().items()))
cited_by["kind"].value_counts().reindex(KINDS, fill_value=0).to_frame("citing papers")

with tu.quiet(): stats = download_neighborhood(hood, output_dir="fulltext", fmt="xml", include_text=False) contexts = ci.citation_contexts(stats.output_dir, SEED, SEED_DOI, TITLE_WORDS, finding=finding) by_pmid = {c["pmid"]: c for c in contexts.values() if c["pmid"] and c["sentences"]} s2 = ci.semantic_scholar_contexts(SEED) # citing sentences for the papers PubMed Central cannot give def sentences_of(pmid): if pmid in by_pmid: return by_pmid[pmid]["sentences"], "full text" return (s2[pmid], "Semantic Scholar") if pmid in s2 else ([], "") def label(kind): return f"Names {FINDING}" if kind == ci.KINDS[1] else kind read_from = cited_by["pmid"].map(sentences_of) cited_by["source"] = read_from.str[1] cited_by["sentence"] = read_from.str[0].map(" … ".join) raw_kinds = read_from.str[0].map(lambda s: ci.classify(s, finding)) cited_by["kind"] = raw_kinds.map(label) cited_by["second_look"] = [ci.worth_a_look(s, k) for s, k in zip(read_from.str[0], raw_kinds)] cited_by["mentions"] = cited_by["pmid"].map(lambda p: by_pmid.get(p, {}).get("mentions")) print(f"Full text downloaded: {stats.successful + stats.skipped} of {stats.requested} articles in PubMed Central; " f"{stats.unavailable} withheld by their publishers") print("Citing sentences read from:", ", ".join(f"{src or 'nowhere'} {n}" for src, n in cited_by["source"].value_counts().items())) cited_by["kind"].value_counts().reindex(KINDS, fill_value=0).to_frame("citing papers")

Full text downloaded: 832 of 1207 articles in PubMed Central; 375 withheld by their publishers
Citing sentences read from: full text 756, nowhere 361, Semantic Scholar 123

Out[6]:

	citing papers
kind
Discusses the retraction or doubts	12
Names Aβ*56	180
Cites it in general	687
No full text, or citation not found	361

The chart counts only the papers that could be read, so that the grey ones do not hide the others; the right edge says how many each period has.

In [7]:

edges = [first_year, 2011, 2016] + [int(d[:4]) for d in (DOUBTS_PUBLIC, RETRACTED) if d] + [last_year + 1]
edges = sorted(set(e for e in edges if first_year <= e <= last_year + 1))
periods = [f"{a}–{b - 1}" if b - 1 > a else str(a) for a, b in zip(edges, edges[1:])]
cited_by["period"] = pd.cut(cited_by["year"], edges, right=False, labels=periods)
read = cited_by[cited_by["kind"] != KINDS[3]]
counts = {p: read[read["period"] == p]["kind"].value_counts().to_dict() for p in periods}
unread = cited_by[cited_by["kind"] == KINDS[3]]["period"].value_counts().to_dict()

charts.kinds_by_period(periods, counts, unread, KINDS[:3], COLOURS, "How the citing papers use it, period by period")

edges = [first_year, 2011, 2016] + [int(d[:4]) for d in (DOUBTS_PUBLIC, RETRACTED) if d] + [last_year + 1] edges = sorted(set(e for e in edges if first_year <= e <= last_year + 1)) periods = [f"{a}–{b - 1}" if b - 1 > a else str(a) for a, b in zip(edges, edges[1:])] cited_by["period"] = pd.cut(cited_by["year"], edges, right=False, labels=periods) read = cited_by[cited_by["kind"] != KINDS[3]] counts = {p: read[read["period"] == p]["kind"].value_counts().to_dict() for p in periods} unread = cited_by[cited_by["kind"] == KINDS[3]]["period"].value_counts().to_dict() charts.kinds_by_period(periods, counts, unread, KINDS[:3], COLOURS, "How the citing papers use it, period by period")

Read a few sentences of each kind. They show what the paper was used for, and whether the classification is right. ⟦CITE⟧ marks the place where the sentence cites the retracted paper; the other numbers are its other references.

In [8]:

examples = (read.sort_values("year", ascending=False).groupby("kind").head(3).sort_values(["kind", "year"]))
examples[["kind", "year", "pmid", "sentence"]].assign(sentence=examples["sentence"].map(lambda s: tu.short(s, 300)))

examples = (read.sort_values("year", ascending=False).groupby("kind").head(3).sort_values(["kind", "year"])) examples[["kind", "year", "pmid", "sentence"]].assign(sentence=examples["sentence"].map(lambda s: tu.short(s, 300)))

Out[8]:

	kind	year	pmid	sentence
6	Cites it in general	2025	40076721	Their ability to inhibit long-term potentiation (LTP) and many other critical neuronal activities is responsible for the classic model of synaptic plasticity and memory loss in vivo, for example, ...
2	Cites it in general	2025	41624198	The amyloid-beta (Aβ) hypothesis proposes that soluble Aβ oligomers (SO-Aβ) are major drivers of synaptic dysfunction and neuronal injury (⟦CITE⟧, 3).
11	Cites it in general	2025	39422790	However, it is unclear whether AD pathogenesis is driven by non-fibrillar Aβ multimers or amyloid plaques [97, ⟦CITE⟧].
3	Discusses the retraction or doubts	2025	41227148	Chistian Piller, journalist at e-Science, documented several examples of this scientific pressure: the retraction of an influential article published in 2006 in Nature [⟦CITE⟧,96] about the role o...
7	Discusses the retraction or doubts	2025	39996369	Candidates have included dimers,51 dodecamers52 (note: the initial 2006 study identifying dodecamers⟦CITE⟧ was recently retracted due to data manipulation), and even a heterogeneous “oligomeric so...
4	Discusses the retraction or doubts	2025	40413393	In an extreme example, post-publication peer review and “sleuthing” successfully identified serious errors in Alzheimer’s disease research [⟦CITE⟧, 6], but more than a decade after the original pu...
48	Names Aβ*56	2022	36359817	For example, Aβ*56, a distinct species of Aβ oligomers with a molecular weight of 56 kDa, was proposed as a promising candidate to explain the genesis of AD, since the injection of such aggregates...
33	Names Aβ*56	2023	37216514	Concentrations of Aβ trimers are elevated in cognitively normal adults who are at risk for Alzheimer’s disease (⟦CITE⟧). … Aβ trimers appear to be the building blocks of the putative dodecamer of ...
18	Names Aβ*56	2024	38433923	Aβ*56 was the first brain-derived amyloid-β (Aβ) oligomer shown to impair memory in mice and rats.⟦CITE⟧ … In keeping with PrP*, Aβ*56 appears to be neurotoxic and associates closely with impaired...

In [9]:

in_full = read[read["source"] == "full text"]
never = (in_full["mentions"] == 0).sum()
print(f"{never} of the {len(in_full)} citing papers read in full text ({never / len(in_full):.0%}) never mention "
      f"{FINDING} anywhere in their text: they cite the paper for a broader claim.")

in_full = read[read["source"] == "full text"] never = (in_full["mentions"] == 0).sum() print(f"{never} of the {len(in_full)} citing papers read in full text ({never / len(in_full):.0%}) never mention " f"{FINDING} anywhere in their text: they cite the paper for a broader claim.")

576 of the 756 citing papers read in full text (76%) never mention Aβ*56 anywhere in their text: they cite the paper for a broader claim.

Worth a second look¶

Keywords catch clear statements such as "was retracted" or "falsified images", but not softer ones. These are the citations sorted as general, or as naming the finding, whose sentence uses a word such as debated, uncertain, controversial or not detected. Most are about amyloid-β in general, not about this paper; read them to decide.

In [10]:

second_look = cited_by[cited_by["second_look"]].sort_values("year", ascending=False)
print(f"{len(second_look)} citations worth a second look")
charts.paper_table(second_look.to_dict("records"), COLOURS)

second_look = cited_by[cited_by["second_look"]].sort_values("year", ascending=False) print(f"{len(second_look)} citations worth a second look") charts.paper_table(second_look.to_dict("records"), COLOURS)

28 citations worth a second look

Out[10]:

Year	Paper	How it cites it	The sentence that cites it
2025	Proteostasis and Its Role in Disease Development. Cell biochemistry and biophysics · PMID 39422790	Cites it in general	However, it is unclear whether AD pathogenesis is driven by non-fibrillar Aβ multimers or amyloid plaques [97, [this paper]].
2024	Real-Time Tracking of Vesicles in Living Cells Reveals That Tau-Hyperphosphorylation Suppresses Unidirectional Transport by Motor Proteins. Chemical & biomedical imaging · PMID 39474119	Cites it in general	Abnormally hyperphosphorylated tau proteins aggregate to form insoluble paired helical filaments (PHFs) and higher-order structures called intracellular neurofibrillary tangles (NFTs).32−35 NFTs are a primary marker of neurodegenerative disorders, such as Alzheimer’s and Parkinson’s; however, it is a controversial issue whether NFTs are their primary cause.[this paper],37
2024	Aβ∗56 is a stable oligomer that impairs memory function in mice. iScience · PMID 38433923 Shares an author: Ashe Karen H	Names Aβ*56	Aβ*56 was the first brain-derived amyloid-β (Aβ) oligomer shown to impair memory in mice and rats.[this paper] … In keeping with PrP*, Aβ*56 appears to be neurotoxic and associates closely with impaired memory,[this paper],,,,,,,,,, but whether it is involved in the replication, aggregation, or propagation of Aβ is unclear. … Although many groups have successfully studied Aβ*56 in mice,[this paper],,,,,,, aging dogs, and humans diagn…
2022	Rational Design of a Cu Chelator That Mitigates Cu-Induced ROS Production by Amyloid Beta. Chembiochem : a European journal of chemical biology · PMID 34878720	Cites it in general	Recent evidence has shown that oligomers cause severe brain damage where the number of oligomers correlate with cognitive impairment in AD patients, triggering the debate that the oligomers are the primary neurotoxic species instead of the insoluble plaques.[10,14–19] From animal studies it has been shown that the oligomers are associated with an increase in synaptic loss and inhibition of long-term potentiation in…
2019	Characterization of the selective in vitro and in vivo binding properties of crenezumab to oligomeric Aβ. Alzheimer's research & therapy · PMID 31787113	Cites it in general	While the extent to which different Aβ species contribute to the pathophysiology of AD remains uncertain, in vitro and ex vivo evidence suggests that soluble low-n molecular weight oligomers (including dimers and trimers, up to dodecamers) may be a major driver of neurotoxicity [[this paper]–7]. … Soluble oligomeric forms of Aβ are considered more neurotoxic than dense core plaques [1–3, [this paper], 7, 8, 31, 32] and seem to…
2016	Three-Dimensional Study of Alzheimer's Disease Hallmarks Using the iDISCO Clearing Method. Cell reports · PMID 27425620	Cites it in general	There are still many unknowns about the origin and the role of these hallmarks, including the debate about the importance of oligomers versus amyloid plaques and NFTs (Berger ; [this paper] ;Walsh ), but we believe that a better understanding of the three-dimensionality of disease hallmarks and their complex association with the immediate environment (e.g. vasculature, microglia) will help clarify the underlying mechanism…
2016	Amyloid β-Protein Assembly and Alzheimer's Disease: Dodecamers of Aβ42, but Not of Aβ40, Seed Fibril Formation. Journal of the American Chemical Society · PMID 26839237	Cites it in general	There has previously been evidence that the dodecamer is a likely proximate toxic agent in transgenic mice studies.[this paper] … They also correlate with the fact that Aβ40 is much less toxic than Aβ42 and that oligomers of Aβ40 were not observed in transgenic mice studies while those of Aβ42 were observed.[this paper],34
2015	Tau aggregation and its interplay with amyloid-β. Acta neuropathologica · PMID 25492702	Cites it in general	There is considerable debate regarding which Aβ species is the most neurotoxic, with increasing evidence suggesting that it is the small molecular weight oligomers that correlate best with disease [8, [this paper], 62, 67]. … Clinical trials are currently being conducted for the next phase of immunotherapies, which have moved away from linear Aβ epitopes targeting soluble Aβ to those that recognize conformational epitopes…
2014	Amyloid β-mediated Zn2+ influx into dentate granule cells transiently induces a short-term cognitive deficit. PloS one · PMID 25536033	Names Aβ*56	Neuronal loss is not observed in animal models overexpressing amyloid-β (Aβ) or infused with Aβ, which develop early synaptic alterations but lack the extensive cell death [this paper], [6]. … Small, soluble Aβ oligomers have been shown to be more neurotoxic than large, insoluble aggregates and fibrils [this paper], [6], [28], [29]. … Furthermore, there are some studies on memory deficits after a single injection of Aβ into the…
2014	Toxic oligomer species of amyloid-β in Alzheimer's disease, a timing issue. Swiss medical weekly · PMID 25375761	Names Aβ*56	While these deposited aggregates have been suspected to be the cause of AD for nearly a century, accumulating evidence over the past twelve years seems to suggest that soluble, non-fibrillar multimeric forms of these proteins might initiate the synaptic and neuronal dysfunction associated with the disease2–[this paper]. … Despite this apparent obstacle and the accompanying ongoing debate surrounding the aforementioned poi…
2014	Interpreting Alzheimer's disease clinical trials in light of the effects on amyloid-β. Alzheimer's research & therapy · PMID 25031632	Cites it in general	Selective lowering of Aβ42 is of therapeutic interest because of increased Aβ42 in FAD mutants, the evidence that Aβ42 is the earliest deposited species [37], and the cognitive disruption caused by Aβ42 aggregates in animal models [38,[this paper]]. … Tarenflurbil failed in phase III [109], but CSF Aβ lowering was not reported in humans and the ability of the compound to lower brain Aβ in preclinical species has been the…
2013	Protein folding and aggregation into amyloid: the interference by natural phenolic compounds. International journal of molecular sciences · PMID 23765219	Cites it in general	This view was first questioned in 1998 [15], and subsequently, an impressive body of experimental data showed that the aggregation nuclei and pre-fibrillar assemblies transiently arising in the path of fibrillization of several peptides and proteins and preceding the appearance of mature fibrils are the main toxic entities [16–20,[this paper]–29]. … The increasing importance of these pre-fibrillar aggregates stems from th…
2012	Soluble Aβ oligomer production and toxicity. Journal of neurochemistry · PMID 22121920 Shares an author: Lesné Sylvain E	Names Aβ*56	Previous research revealed that primary cortical neurons from Tg2576 produce monomers and trimers; Aβ dimers were not detected under the experimental conditions used ([this paper]) indicating that neurons preferentially produce and secrete monomers and trimers but not dimers. … First, as mentioned in the above section, trimers are the preferential, most abundant species produced and secreted by primary neurons in vitro (⟦…
2012	Interaction between pathogenic proteins in neurodegenerative disorders. Journal of cellular and molecular medicine · PMID 22176890	Cites it in general	How Aβ aggregates impair neuronal function remains uncertain, but evidence is growing that oligomeric forms of the protein, which can range in size from dimers to dodecamers or larger [[this paper],91,92,93], are more deleterious to brain function than are histologically obvious Aβ lesions such as senile plaques and cerebral amyloid angiopathy (CAA).
2011	Mitochondrial bioenergetics is defective in presymptomatic Tg2576 AD mice. Translational neuroscience · PMID 24286008	Cites it in general	While amyloid plaques are not detected in 5–8 month old Tg2576, soluble forms of Aβ, such as the oligomers found in our study, may inhibit mitochondrial respiration in synapses and set in motion the loss of synapses and subsequent cognitive decline observed at a later age [[this paper]].
2011	Pathogenic protein seeding in Alzheimer disease and other neurodegenerative disorders. Annals of neurology · PMID 22028219	Cites it in general	How Aβ aggregates impair neuronal function remains uncertain, but evidence is growing that oligomeric forms of the protein, which can range in size from dimers to dodecamers or larger[this paper]-18, are more deleterious to brain function than are histologically obvious Aβ lesions such as senile plaques and CAA.
2011	Polyphenolic glycosides and aglycones utilize opposing pathways to selectively remodel and inactivate toxic oligomers of amyloid β. Chembiochem : a European journal of chemical biology · PMID 21671331	Cites it in general	Despite these significant challenges, several recent studies are beginning to elucidate the remodeling activities and pathways used by multiple compounds to convert toxic prefibrillar oligomers into various conformers with low toxicity.[19–22] The most well characterized prefibrillar intermediates are soluble oligomers of the Aβ40 and Aβ42 peptides associated with Alzheimer’s disease (AD).[7, 23, 24] These intermedi…
2011	Regulation of caspases in the nervous system implications for functions in health and disease. Progress in molecular biology and translational science · PMID 21238939	Cites it in general	The relevant size of the oligomers is a topic of debate, and oligomers as large as dodecamers have been isolated from human AD brains125 and from transgenic mice.[this paper]
2010	Inhibiting α-synuclein oligomerization by stable cell-penetrating β-synuclein fragments recovers phenotype of Parkinson's disease model flies. PloS one · PMID 21085664	Cites it in general	It is currently debated whether the precipitated insoluble fibrils or actually soluble oligomers are the cytotoxic aggregative elements that are associated with the pathologies of each of these diseases [1], [10]–[this paper].
2010	Modeling of tau-mediated synaptic and neuronal degeneration in Alzheimer's disease. International journal of Alzheimer's disease · PMID 20862366	Cites it in general	Controversial experimental data leave nevertheless many questions open with regards to the exact composition and size of the amyloid oligomers in vivo [3–[this paper]].
2010	The Nuclear Receptor PPARgamma as a Therapeutic Target for Cerebrovascular and Brain Dysfunction in Alzheimer's Disease. Frontiers in aging neuroscience · PMID 20725514	Names Aβ*56	Whether a reduction in Aβ oligomers is required for mnemonic improvement is still debated, especially in light of the improved Morris water maze performance of elderly Tg2576 mice treated with COX-2 inhibitors, yet no reduction in levels of soluble and insoluble Aβ1–40/42 or Aβ⋆56 (Kotilinek et al., 2008), a 56-kDa Aβ1–42 oligomer linked to the memory deficits of these mice (Lesné et al., [this paper]).
2010	Polymorphism in Alzheimer Abeta amyloid organization reflects conformational selection in a rugged energy landscape. Chemical reviews · PMID 20402519	Names Aβ*56	In contrast, while a higher concentration of Al3+ has been established in AD patients’ brain,211−214 the mechanism of its pathogenesis in AD is still debated.215−218 Nonetheless, experiments clearly demonstrated that Al3+ ions do play a role in Aβ aggregation and in neurotoxicity.219−224 Interactions with these metal ions may explain the increased involvement of soluble toxic oligomeric species.([this paper]) To date, the…
2010	Intraneuronal beta-amyloid accumulation and synapse pathology in Alzheimer's disease. Acta neuropathologica · PMID 20354705	Cites it in general	Attempts have been made at further separating the soluble pool of Aβ in the brain as soluble intracellular-enriched, membrane-associated or extracellular-enriched pools [[this paper]], although the feasibility of separating these pools of Aβ after brain homogenization, which breaks apart cell membranes, is questionable.
2009	Alzheimer's disease-like pathological features in transgenic mice expressing the APP intracellular domain. Proceedings of the National Academy of Sciences of the United States of America · PMID 19837693	Cites it in general	However, the molecular nature of such soluble aggregates is uncertain and their existence and precise composition remains debated (14, 15). from Semantic Scholar
2009	Decreased brain-derived neurotrophic factor depends on amyloid aggregation state in transgenic mouse models of Alzheimer's disease. The Journal of neuroscience : the official journal of the Society for Neuroscience · PMID 19625522	Names Aβ*56	The blots were incubated with a 1:3000 dilution (0.34 g/ml) of 6E10 (monoclonal anti-A antibody, Signet Laboratories), which recognizes all species of A aggregates (Lesné et al., 2006), overnight at 4°C in TBS-T. … Extremely strong A * signals (Lesné et al., 2006) (56 kDa 12-mers, as indicated in Fig. … Extremely strong A * signals (Lesné et al., 2006) (56 kDa 12-mers, as indicated in Fig. … 34 g/ml) of 6E10 (mono… from Semantic Scholar
2009	CCL2 accelerates microglia-mediated Abeta oligomer formation and progression of neurocognitive dysfunction. PloS one · PMID 19593388	Cites it in general	To address this apparent discrepancy we have now extended our studies in two ways: (1) we evaluated hippocampal neurophysiology, memory and cognition to establish the functional importance of the neuropathologic endpoints; and (2) we assessed whether microglia affect conversion of monomeric Aβ to oligomer form, a key step towards cognitive dysfunction and subsequent fibril formation [12], [this paper]. … This is followed…
2009	Disruption of fast axonal transport is a pathogenic mechanism for intraneuronal amyloid beta. Proceedings of the National Academy of Sciences of the United States of America · PMID 19321417	Cites it in general	Moreover, oA levels correlate with impairments in cognitive function, learning, and memory (9, 10), but the molecular basis of these effects are uncertain. from Semantic Scholar
2008	Brain and behavior changes in 12-month-old Tg2576 and nontransgenic mice exposed to anesthetics. Neurobiology of aging · PMID 17346857	Cites it in general	…peptides into a variety of soluble oligomers, ranging in size from 4 to 20 monomers, instead of the insoluble fibrils found in plaque (Billings et al., 2005; Catalano et al., 2006; Chromy et al., 2003; Kayed et al., 2003; Klein et al., 2004; Lesne et al., 2006; Petkova et al., 2005; Selkoe, 2004). … Although the mechanism of neurodegeneration in Alzheimer's disease is still unclear, the leading theory implicates th… from Semantic Scholar

5. Cited after the doubts and the retraction¶

A citation after a retraction is not always an error: a paper may cite it to discuss the retraction. The chart shows every paper citing it since doubts became public, one square each.

In [11]:

since = int((DOUBTS_PUBLIC or RETRACTED or str(last_year))[:4])
late = cited_by[cited_by["year"] >= since].sort_values("year", ascending=False)
doubting = (late["kind"] == KINDS[0]).sum()
charts.waffle(list(late.sort_values("year")["kind"]), KINDS, COLOURS,
              f"Since {since}, {len(late)} papers cite it; {doubting} of them say it is in doubt",
              f"One square per paper citing it from {since} on, coloured by how its citing sentence uses it.")

since = int((DOUBTS_PUBLIC or RETRACTED or str(last_year))[:4]) late = cited_by[cited_by["year"] >= since].sort_values("year", ascending=False) doubting = (late["kind"] == KINDS[0]).sum() charts.waffle(list(late.sort_values("year")["kind"]), KINDS, COLOURS, f"Since {since}, {len(late)} papers cite it; {doubting} of them say it is in doubt", f"One square per paper citing it from {since} on, coloured by how its citing sentence uses it.")

Every citation since the retraction¶

The papers citing it from the year of the retraction to today, newest first, with the sentence in which each one cites it. Click a title to open it in PubMed. The year is the year of publication, so papers from the retraction year may have been written before it; and PubMed adds recent papers with a delay of weeks to months.

In [12]:

recent_from = int(RETRACTED[:4]) if RETRACTED else last_year - 2
recent = cited_by[cited_by["year"] >= recent_from].sort_values(["year", "pmid"], ascending=False)
verbs = dict(zip(KINDS, ["discussing the retraction or doubts", f"naming {FINDING}", "citing it in general", "not read"]))
counts = recent["kind"].value_counts().reindex(KINDS, fill_value=0)
print(f"{len(recent)} papers cite it from {recent_from} to {last_year}:",
      ", ".join(f"{n} {verbs[k]}" for k, n in counts.items() if n))
charts.paper_table(recent.to_dict("records"), COLOURS)

recent_from = int(RETRACTED[:4]) if RETRACTED else last_year - 2 recent = cited_by[cited_by["year"] >= recent_from].sort_values(["year", "pmid"], ascending=False) verbs = dict(zip(KINDS, ["discussing the retraction or doubts", f"naming {FINDING}", "citing it in general", "not read"])) counts = recent["kind"].value_counts().reindex(KINDS, fill_value=0) print(f"{len(recent)} papers cite it from {recent_from} to {last_year}:", ", ".join(f"{n} {verbs[k]}" for k, n in counts.items() if n)) charts.paper_table(recent.to_dict("records"), COLOURS)

24 papers cite it from 2024 to 2026: 7 discussing the retraction or doubts, 1 naming Aβ*56, 11 citing it in general, 5 not read

Out[12]:

Year	Paper	How it cites it	The sentence that cites it
2026	Targeting soluble misfolded oligomers in anti-amyloid research. Nature reviews. Chemistry · PMID 42624989	No full text, or citation not found	not read
2026	Performance of AI Tools in Citing Retracted Literature : Content Analysis. Journal of medical Internet research · PMID 42066286	No full text, or citation not found	not read
2025	Unraveling the neuroprotective mechanisms of elephant black garlic extract against beta amyloid peptide-induced neurotoxicity. Frontiers in nutrition · PMID 41624198	Cites it in general	The amyloid-beta (Aβ) hypothesis proposes that soluble Aβ oligomers (SO-Aβ) are major drivers of synaptic dysfunction and neuronal injury ([this paper], 3).
2025	Alzheimer Syndrome or Age-Related Dementia-History, Therapy and Prevention. Journal of clinical medicine · PMID 41227148	Discusses the retraction or doubts	Chistian Piller, journalist at e-Science, documented several examples of this scientific pressure: the retraction of an influential article published in 2006 in Nature [[this paper],96] about the role of the βA oligomer Ab*56, that altered memory [97]; the resignation of the NIA Neuroscience Director, for suspicion of scientific misconduct [39,98]; the withdrawal of the drug simufilan for fraud in a trial [99].
2025	"Non-Markovian" and "directional" errors inhibit scientific self-correction and can lead fields of study astray: an illustration using gardening and obesity-related outcomes. BMC medical research methodology · PMID 40413393	Discusses the retraction or doubts	In an extreme example, post-publication peer review and “sleuthing” successfully identified serious errors in Alzheimer’s disease research [[this paper], 6], but more than a decade after the original publication, by which time substantial costs of multiple types were incurred.
2025	APOE deficiency inhibits amyloid-facilitated (A) tau pathology (T) and neurodegeneration (N), halting progressive ATN pathology in a preclinical model. Molecular psychiatry · PMID 40307424	Cites it in general	The underlying molecular and cellular mechanisms of progression beyond amyloid pathology, as well as the toxic Aβ and tau culprits [[this paper]–27], remain to be unequivocally defined, which is required to design therapeutic strategies that halt ATN progression and effectively impact AD symptom progression.
2025	Cellular Prion Protein and Amyloid-β Oligomers in Alzheimer's Disease-Are There Connections? International journal of molecular sciences · PMID 40076721	Cites it in general	Their ability to inhibit long-term potentiation (LTP) and many other critical neuronal activities is responsible for the classic model of synaptic plasticity and memory loss in vivo, for example, in middle-aged Tg2576 mice, which are equipped with a variant of human amyloid-β precursor protein (APP) associated with AD and in culture cells [9,[this paper],11,12].
2025	Presenilin, γ-Secretase, and the Search for Pathogenic Triggers of Alzheimer's Disease. Biochemistry · PMID 39996369	Discusses the retraction or doubts	Candidates have included dimers,51 dodecamers52 (note: the initial 2006 study identifying dodecamers[this paper] was recently retracted due to data manipulation), and even a heterogeneous “oligomeric soup”.54, 55
2025	Recent Advances in Co-Condensation and Co-Aggregation of Amyloid Proteins Linked to Neurodegenerative Diseases. Current protein & peptide science · PMID 39950286	No full text, or citation not found	not read
2025	Morphological and Molecular Profiling of Amyloid-β Species in Alzheimer's Pathogenesis. Molecular neurobiology · PMID 39446217	No full text, or citation not found	not read
2025	Proteostasis and Its Role in Disease Development. Cell biochemistry and biophysics · PMID 39422790	Cites it in general	However, it is unclear whether AD pathogenesis is driven by non-fibrillar Aβ multimers or amyloid plaques [97, [this paper]].
2024	Real-Time Tracking of Vesicles in Living Cells Reveals That Tau-Hyperphosphorylation Suppresses Unidirectional Transport by Motor Proteins. Chemical & biomedical imaging · PMID 39474119	Cites it in general	Abnormally hyperphosphorylated tau proteins aggregate to form insoluble paired helical filaments (PHFs) and higher-order structures called intracellular neurofibrillary tangles (NFTs).32−35 NFTs are a primary marker of neurodegenerative disorders, such as Alzheimer’s and Parkinson’s; however, it is a controversial issue whether NFTs are their primary cause.[this paper],37
2024	Modifying Alzheimer's disease pathophysiology with photobiomodulation: model, evidence, and future with EEG-guided intervention. Frontiers in neurology · PMID 39246604	Discusses the retraction or doubts	For instance, the initial identification of the Aβ molecule, specifically Aβ-56, as reported in Lesné et al.’s 2006 Nature publication ([this paper]), has been scrutinized for alleged image alterations (239).
2024	A Lack of Tourism-Based Health Services Amid Global Aging: How Tourism and Health Practices Can Combine to Benefit the Aging Population. Health services insights · PMID 39129909	Discusses the retraction or doubts	The study’s senior author [this paper] admitted to manipulating data in research that linked a specific form of amyloid protein to memory loss.
2024	A Brief History of the Progress in Our Understanding of Genetics and Lifestyle, Especially Diet, in the Risk of Alzheimer's Disease. Journal of Alzheimer's disease : JAD · PMID 39121130	Discusses the retraction or doubts	The hypothesis was that a specific amyloid-β (Aβ) protein assembly, Aβ*56, blocks memory.[this paper] … As a result, the article was retracted by Nature on March 16, 2024 and most of the authors agreed with the retraction in a note published June 24, 2024.[this paper]
2024	How to fight fake papers: a review on important information sources and steps towards solution of the problem. Naunyn-Schmiedeberg's archives of pharmacology · PMID 38970685	Discusses the retraction or doubts	One of the most highly regarded Alzheimer’s studies (Lesné et al. [this paper]), which has helped shape the direction of Alzheimer’s research and treatment development in recent years, has been suspected of being falsified for some time.
2024	Skeletal phenotypes and molecular mechanisms in aging mice. Zoological research · PMID 38894518	Cites it in general	(2021) defined age categories for inbred laboratory mice (Mus musculus) as juveniles (birth to one month), young adults (1–4 months), adults (4–10 months), late adults (10–14 months), aging adults (14–24 months), and aged adults (>24 months), while other studies have classified mice as young (one month) (Hoerder-Suabedissen & Molnár, 2015), young adults (3–6 months) (Flurkey et al., 2007), middle-aged adults (6–14 m…
2024	Approaches for Increasing Cerebral Efflux of Amyloid-β in Experimental Systems. Journal of Alzheimer's disease : JAD · PMID 38875041	No full text, or citation not found	not read
2024	Aβ∗56 is a stable oligomer that impairs memory function in mice. iScience · PMID 38433923 Shares an author: Ashe Karen H	Names Aβ*56	Aβ*56 was the first brain-derived amyloid-β (Aβ) oligomer shown to impair memory in mice and rats.[this paper] … In keeping with PrP*, Aβ*56 appears to be neurotoxic and associates closely with impaired memory,[this paper],,,,,,,,,, but whether it is involved in the replication, aggregation, or propagation of Aβ is unclear. … Although many groups have successfully studied Aβ*56 in mice,[this paper],,,,,,, aging dogs, and humans diagn…
2024	Copper(II) Can Kinetically Trap Arctic and Italian Amyloid-β40 as Toxic Oligomers, Mimicking Cu(II) Binding to Wild-Type Amyloid-β42: Implications for Familial Alzheimer's Disease. JACS Au · PMID 38425915	Cites it in general	The small diffusible prefibrilar assemblies of Aβ42 are the most synaptotoxic.[this paper]–14 … Aβ cytotoxicity is believed to be caused by membrane permeability, this results in unregulated Ca(II) cellular influx into the lumen.[this paper]–14,17,43
2024	Potential Therapeutic Effects of Bifidobacterium breve MCC1274 on Alzheimer's Disease Pathologies in AppNL-G-F Mice. Nutrients · PMID 38398861	Cites it in general	Several studies have suggested that Aβ aggregates critically contribute to the hyperphosphorylation of tau protein, which results in neuronal dysfunction and death, leading to cognitive dysfunction [3,[this paper],5,6].
2024	Investigation of encapsulated water wire within self-assembled hydrophilic nanochannels, in a modified γ4-amino acid crystals: Tracking thermally induced changes of intermolecular interactions within a crystalline hydrate. Amino acids · PMID 38315214	Cites it in general	In the beginning, the self-assembly of amyloid β (Aβ) was studied from a pathological perspective rather than an attempt to develop functional nanomaterials, due to the closeness of the phenomena with Alzheimer’s disease (Lesné et al. [this paper]).
2024	Antibodies Raised Against an Aβ Oligomer Mimic Recognize Pathological Features in Alzheimer's Disease and Associated Amyloid-Disease Brain Tissue. ACS central science · PMID 38292607	Cites it in general	SDS-stable Aβ dodecamers composed of antiparallel β-sheets have been observed in protein extracts from mouse and human brains,[this paper],42,129 and the large assemblies formed by 2AT-L in the aqueous environments of SEC and DLS recapitulate previously observed large assemblies of full-length Aβ.39,94,95 … To determine extraction conditions for isolating pAb2AT-L-reactive species, we adapted a protein extraction protocol…
2024	Lung endothelium, tau, and amyloids in health and disease. Physiological reviews · PMID 37561137	Cites it in general	Amyloid precursor protein is expressed in brain as multiple alternatively spliced isoforms ranging from 639 to 770 amino acids (143, 144) and in endothelial cells as two isoforms of 751 and 770 amino acids ([this paper]). … This conclusion is supported by in vitro, animal, and human studies ([this paper]–354).

6. Retracted papers that cite it¶

Retractions cluster: when one paper falls, papers by the same authors, or built on the same data, are often examined too. PubMed flags each citing paper that has itself been retracted. The last column lists the authors it shares with the retracted paper, matched by last name and first initial.

In [13]:

retracted = cited_by[cited_by["retracted"]].copy()
retracted["their_citers"] = retracted["pmid"].map(lambda p: len(citers.get(p, [])))
retracted[["year", "pmid", "title", "kind", "their_citers", "shared_authors"]].sort_values("year")

retracted = cited_by[cited_by["retracted"]].copy() retracted["their_citers"] = retracted["pmid"].map(lambda p: len(citers.get(p, []))) retracted[["year", "pmid", "title", "kind", "their_citers", "shared_authors"]].sort_values("year")

Out[13]:

	year	pmid	title	kind	their_citers	shared_authors
915	2010	20655472	SIRT1 suppresses beta-amyloid production by activating the alpha-secretase gene ADAM10.	Cites it in general	209
981	2011	20031278	Cognitive effects of cell-derived and synthetically derived Aβ oligomers.	Names Aβ*56	71	Lesné Sylvain, Ashe Karen H
682	2012	22836259	Soluble α-synuclein is a novel modulator of Alzheimer's disease pathophysiology.	No full text, or citation not found	79	Lesné Sylvain E
651	2012	23175838	The complex PrP(c)-Fyn couples human oligomeric Aβ with pathological tau changes in Alzheimer's disease.	No full text, or citation not found	174	Lesné Sylvain E
316	2017	28487416	The amyloid-β oligomer Aβ*56 induces specific alterations in neuronal signaling that lead to tau phosphorylation and aggregation.	Names Aβ*56	60	Lesné Sylvain E
163	2020	32246090	In situ structural characterization of early amyloid aggregates in Alzheimer's disease transgenic mice and Octodon degus.	Names Aβ*56	3

7. Where did its influence travel?¶

Some citing papers carried the paper much further than others: a widely cited review reaches thousands of readers. The first chart ranks the citing papers by how many papers cite them.

In [14]:

cited_by["their_citers"] = cited_by["pmid"].map(lambda p: len(citers.get(p, [])))
top = cited_by.nlargest(12, "their_citers")
charts.carriers([f"{tu.short(t, 55)} ({y})" for t, y in zip(top["title"], top["year"])], list(top["their_citers"]),
                list(top["kind"]), COLOURS, "The citing papers that carried it furthest")

cited_by["their_citers"] = cited_by["pmid"].map(lambda p: len(citers.get(p, []))) top = cited_by.nlargest(12, "their_citers") charts.carriers([f"{tu.short(t, 55)} ({y})" for t, y in zip(top["title"], top["year"])], list(top["their_citers"]), list(top["kind"]), COLOURS, "The citing papers that carried it furthest")

The second chart follows every second-step paper back to the paper it cites. Each one is counted once, by its most specific link: a paper citing both a paper that names Aβ*56 and a review that cites it in general counts as building on Aβ*56.

In [15]:

via = {}
for kind in [KINDS[1], KINDS[0], KINDS[2], KINDS[3]]:   # most specific first
    for pmid in cited_by.loc[cited_by["kind"] == kind, "pmid"]:
        for q in citers.get(pmid, []):
            if q in hop2:
                via.setdefault(q, kind)
labels = {KINDS[1]: f"Through a paper that names {FINDING}", KINDS[0]: "Through a paper discussing the doubts",
          KINDS[2]: "Only through general citations", KINDS[3]: "Only through papers we could not read"}
parts = [(labels[k], sum(1 for v in via.values() if v == k), COLOURS[k]) for k in [KINDS[1], KINDS[0], KINDS[2], KINDS[3]]]
charts.composition(parts, len(hop2), f"{parts[0][1] / len(hop2):.0%} of the second step builds on a paper naming {FINDING}",
                   "Each second-step paper is counted once, by the most specific way it is linked to the retracted paper.")

via = {} for kind in [KINDS[1], KINDS[0], KINDS[2], KINDS[3]]: # most specific first for pmid in cited_by.loc[cited_by["kind"] == kind, "pmid"]: for q in citers.get(pmid, []): if q in hop2: via.setdefault(q, kind) labels = {KINDS[1]: f"Through a paper that names {FINDING}", KINDS[0]: "Through a paper discussing the doubts", KINDS[2]: "Only through general citations", KINDS[3]: "Only through papers we could not read"} parts = [(labels[k], sum(1 for v in via.values() if v == k), COLOURS[k]) for k in [KINDS[1], KINDS[0], KINDS[2], KINDS[3]]] charts.composition(parts, len(hop2), f"{parts[0][1] / len(hop2):.0%} of the second step builds on a paper naming {FINDING}", "Each second-step paper is counted once, by the most specific way it is linked to the retracted paper.")

8. Compared with its neighbors¶

Is that much reach unusual? The papers PubMed finds most similar to the retracted one are a fair comparison: same topic, similar methods.

In [16]:

similar_citers = ci.citers_of([a.pmid for a in hood.similar])
similar = pd.DataFrame([{"year": int(a.year), "citations": len(similar_citers.get(a.pmid, []))}
                        for a in hood.similar if a.year and a.year.isdigit()])
beaten = (similar["citations"] < len(hop1)).sum()
charts.compared(list(similar["year"]), list(similar["citations"]), first_year, len(hop1), "the retracted paper",
                f"It is cited more than {beaten} of its {len(similar)} most similar papers")

similar_citers = ci.citers_of([a.pmid for a in hood.similar]) similar = pd.DataFrame([{"year": int(a.year), "citations": len(similar_citers.get(a.pmid, []))} for a in hood.similar if a.year and a.year.isdigit()]) beaten = (similar["citations"] < len(hop1)).sum() charts.compared(list(similar["year"]), list(similar["citations"]), first_year, len(hop1), "the retracted paper", f"It is cited more than {beaten} of its {len(similar)} most similar papers")

9. A knowledge graph of the paper's impact¶

Everything above becomes an Obsidian knowledge graph in two steps:

1. The retracted paper's neighborhood: every paper citing it and the 100 most similar papers, each a note with its MeSH topics and flags.
2. The neighborhoods of some citing papers, their neighbors' neighbors: the retracted citing papers, then the most-cited papers that name Aβ*56, up to SECOND_HOP_SEEDS, with 30 similar, citing and cited papers each.

Then each citing paper's note gets four properties of its own: hop, citation_kind, citation_sentence, the sentence that cites the paper, and citation_source, where that sentence was read. Obsidian shows them on each note, and a table, Citation impact.base, lists the citing papers by kind. Rebuilding the graph keeps them.

In [17]:

TOPIC = "abeta56 retraction impact"
with tu.quiet():
    result = create_kg(TOPIC, seeds=[SEED], max_per_relation=5000)
    named = cited_by[cited_by["kind"] == f"Names {FINDING}"].nlargest(SECOND_HOP_SEEDS, "their_citers")
    second_seeds = list(dict.fromkeys(list(retracted["pmid"]) + list(named["pmid"])))[:SECOND_HOP_SEEDS]
    result = create_kg(TOPIC, seeds=second_seeds, max_per_relation=30)
print(result)

properties = {SEED: {"hop": 0}}
for row in cited_by.itertuples():
    sentence = row.sentence.replace(ci.CITE, f"[PMID {SEED}]")
    properties[row.pmid] = {"hop": 1, "citation_kind": row.kind, "citation_sentence": tu.short(sentence, 400),
                            "citation_source": row.source}
for pmid in hop2:
    properties.setdefault(pmid, {"hop": 2})
print("Notes annotated:", ci.annotate(result.kg_dir, properties))
print("Table:", ci.write_base(result.kg_dir).name)

TOPIC = "abeta56 retraction impact" with tu.quiet(): result = create_kg(TOPIC, seeds=[SEED], max_per_relation=5000) named = cited_by[cited_by["kind"] == f"Names {FINDING}"].nlargest(SECOND_HOP_SEEDS, "their_citers") second_seeds = list(dict.fromkeys(list(retracted["pmid"]) + list(named["pmid"])))[:SECOND_HOP_SEEDS] result = create_kg(TOPIC, seeds=second_seeds, max_per_relation=30) print(result) properties = {SEED: {"hop": 0}} for row in cited_by.itertuples(): sentence = row.sentence.replace(ci.CITE, f"[PMID {SEED}]") properties[row.pmid] = {"hop": 1, "citation_kind": row.kind, "citation_sentence": tu.short(sentence, 400), "citation_source": row.source} for pmid in hop2: properties.setdefault(pmid, {"hop": 2}) print("Notes annotated:", ci.annotate(result.kg_dir, properties)) print("Table:", ci.write_base(result.kg_dir).name)

============================================================
Knowledge graph: abeta56 retraction impact
============================================================
Folder:            workspace\retraction_impact\kg_abeta56_retraction_impact
Study searches:    0 (0 run now, 0 new articles)
Study seeds:       11 (10 fetched now)
============================================================
============================================================
Obsidian vault
============================================================
Vault:             workspace\retraction_impact\kg_abeta56_retraction_impact
Sources:           11
Papers:            2023 (0 full text, 2023 stubs)
MeSH concepts:     2426
Collections:       11
Notes:             1186 created, 983 updated, 2292 unchanged
PubMed records:    90 fetched
  - Without MeSH:  282 (offline, too new, or a journal outside MEDLINE)
============================================================

Notes annotated: 1684
Table: Citation impact.base

A map of the graph: the papers citing the retracted one around it, grouped by kind, and the neighborhoods fetched in step 2 fanned out around their papers.

In [18]:

kg = tu.read_kg(result.kg_dir)
charts.radial_map(kg, SEED, dict(zip(cited_by["pmid"], cited_by["kind"])), KINDS, COLOURS, second_seeds,
                  "The papers citing it, and their neighborhoods")

kg = tu.read_kg(result.kg_dir) charts.radial_map(kg, SEED, dict(zip(cited_by["pmid"], cited_by["kind"])), KINDS, COLOURS, second_seeds, "The papers citing it, and their neighborhoods")

Open it in Obsidian. Choose Open folder as vault and select the folder printed above, kg_abeta56_retraction_impact; the Obsidian guide explains the rest. Then:

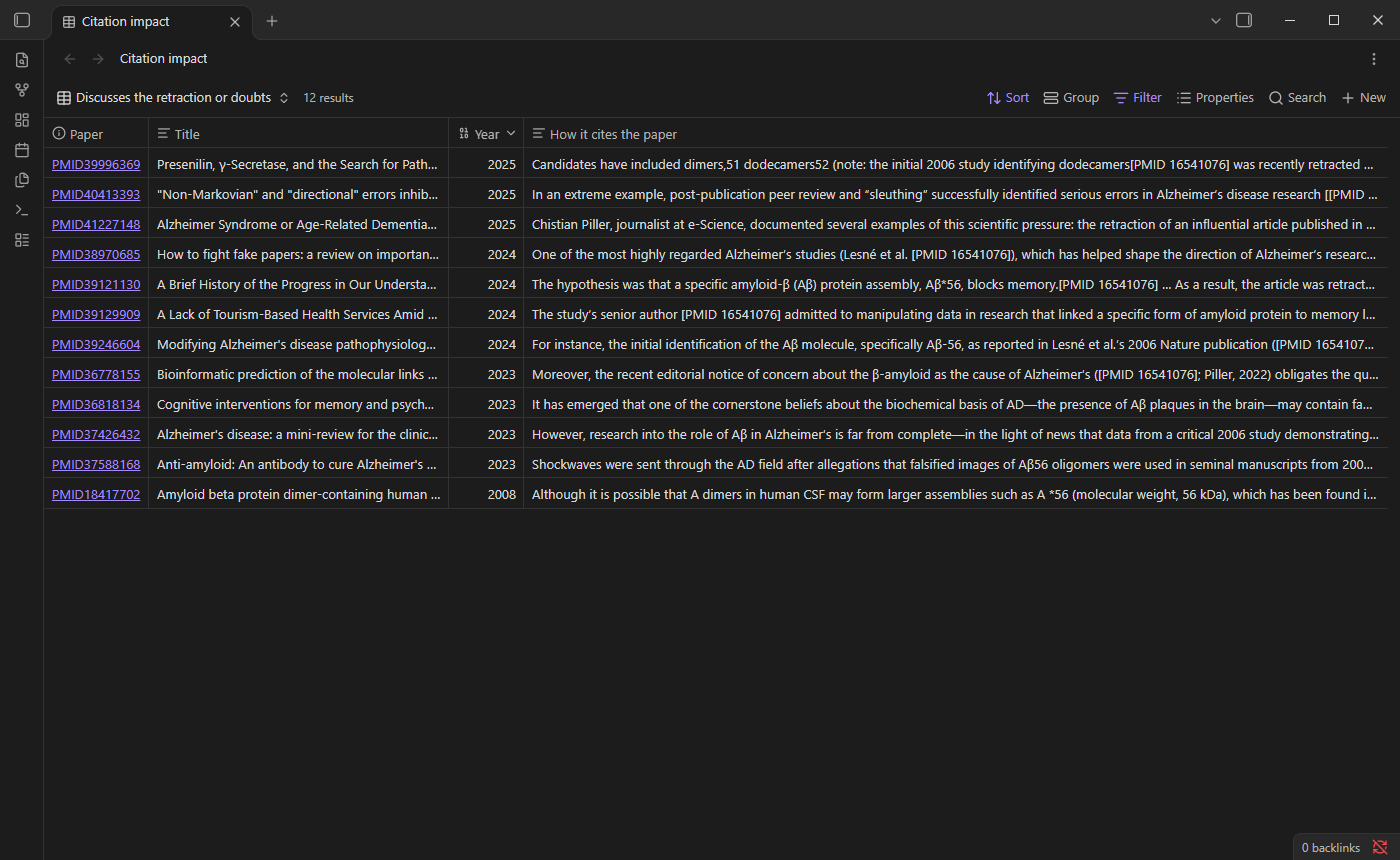

• Open Citation impact for the table of citing papers, one view per kind: you can read every citing sentence there, sort by year, and add your own columns.
• Open the retracted paper's note, PMID16541076, to see every paper citing it, and its retraction flag.
• Search [citation_kind: "Discusses the retraction or doubts"] to find the papers that discuss the retraction.

In Google Colab, the next cell saves the graph to your computer as a zip file. A copy of the graph from the saved run is also in the repository, in knowledge_graphs/kg_abeta56_retraction_impact: download it to explore the graph without running this notebook.

In [19]:

if tu.in_colab():
    tu.download(result.kg_dir)

if tu.in_colab(): tu.download(result.kg_dir)

10. At a glance¶

The headline numbers of this run, for a slide or a report.

In [20]:

late_since = f"since {since}"
charts.key_numbers([
    (f"{len(hop1):,}", "papers cite it", f"in PubMed, {first_year} to {last_year}"),
    (f"{len(hop2):,}", "more papers cite those", "the second citation step"),
    (f"{field_near / field_total:.0%}", f"of {field_label} papers", f"since {first_year} are within these two steps"),
    (f"{len(late)}", f"papers cite it {late_since}", "after doubts became public" if DOUBTS_PUBLIC else "recently"),
    (f"{doubting}", "of them say it is in doubt", "where they cite it"),
    (f"{len(retracted)}", "citing papers were retracted too",
     f"{(retracted['shared_authors'] != '').sum()} of them share an author with it"),
], f"PMID {SEED} at a glance")

late_since = f"since {since}" charts.key_numbers([ (f"{len(hop1):,}", "papers cite it", f"in PubMed, {first_year} to {last_year}"), (f"{len(hop2):,}", "more papers cite those", "the second citation step"), (f"{field_near / field_total:.0%}", f"of {field_label} papers", f"since {first_year} are within these two steps"), (f"{len(late)}", f"papers cite it {late_since}", "after doubts became public" if DOUBTS_PUBLIC else "recently"), (f"{doubting}", "of them say it is in doubt", "where they cite it"), (f"{len(retracted)}", "citing papers were retracted too", f"{(retracted['shared_authors'] != '').sum()} of them share an author with it"), ], f"PMID {SEED} at a glance")

11. What these numbers can and cannot tell you¶

• The counts are PubMed's. PubMed links a citation only when the citing article's full text is in PubMed Central, so it counts fewer citations than Google Scholar or Web of Science: 1,240 here, where nearly 2,500 have been reported for this paper. The shares and trends are more reliable than the totals.
• The second step is an upper bound. A paper two steps away may share nothing with Aβ*56 beyond a common review. Section 7 shows how much of the reach passes through papers that name the finding.
• The classification is by keywords. "Controversy" may refer to the amyloid hypothesis in general rather than this paper, and a paper can discuss Aβ*56 without the words in FINDING_WORDS. Read the sentences, in section 4 or in Obsidian, and the citations worth a second look, before you report a number.
• Some sentences come from Semantic Scholar. For papers whose full text is not in PubMed Central, the citing sentences are Semantic Scholar's, which are often shorter: on the papers both sources cover, they agree on the kind of citation nine times in ten, and where they differ, the full text found Aβ*56 and Semantic Scholar's excerpt did not. Without an API key, Semantic Scholar answers slowly and sometimes not at all; the notebook then reads full text only.
• A citation is not an endorsement. Papers cite work to build on it, to compare with it, or to dispute it, and only the sentence tells which.
• Retractions take time to spread. PubMed marks the retracted paper, but citing papers written before the retraction stay as they are, and reviews keep their claims until they are revised.

To study another paper, change the settings at the top and run the notebook again. For a paper that has not been retracted, the same sections measure how its finding spread, and whether anyone has questioned it.

This question continues as a study in studies/abeta56_retraction_impact: the citing papers of this run frozen as a table, the second step fetched, a sourced account of what the paper claimed and what was wrong, counts of the claim and its correction in language-model training corpora, and probes of what models say about Aβ*56.

Next: tutorial 4 explains evidence neighborhoods, and tutorial 5 the knowledge graph, in more depth.
